Model No.: 260-15096

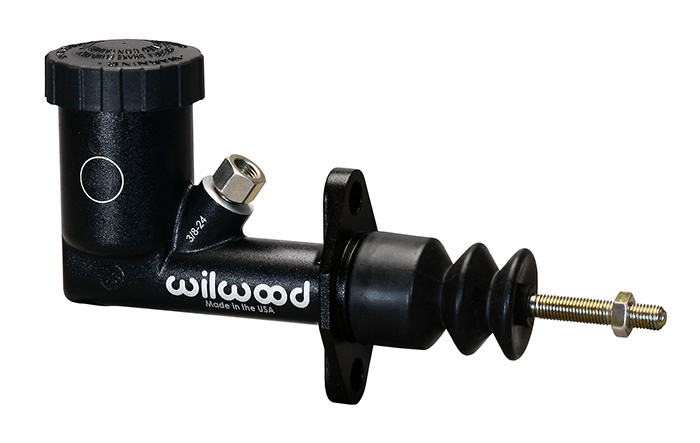

Wilwood’s new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellows cap. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.

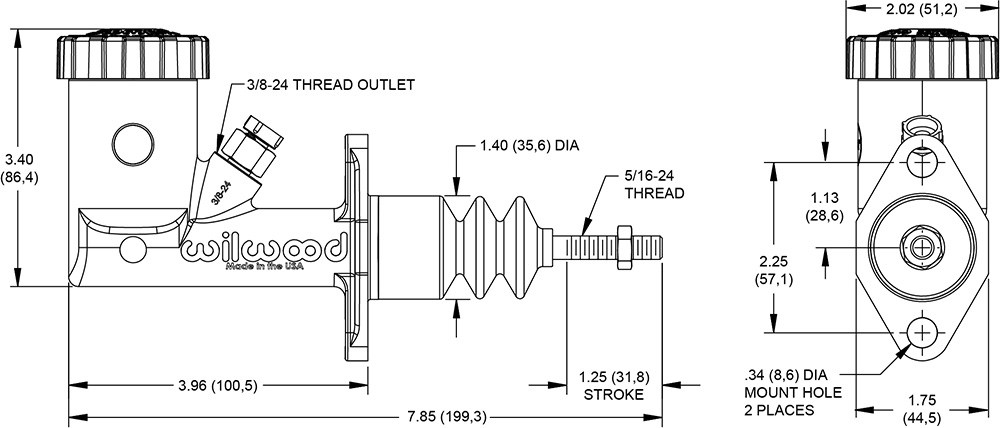

| Master Cylinder Dimensions | |
|---|---|
| Bore Size | 5/8″ |
| Area (in²) | 0.310 |
| Stroke | 1.25 |
| Volume (cu in) | 0.39 |
| Master Cylinder Description | |
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum |
| Finish | Black E-coat |
| Reservoir | |
| Res Type | Integral |
| Res Size (oz) | 1.5 |
| Res Size(cu in) | 2.7 |
| Additional Dimensions | |
|---|---|
| Overall Length(in) | 7.99″ |
| Flange to End Length (in) | 3.96 |
| Inlet Size (in) | |
| Inlet Fit (in) | |
| Outlet Size 1 (in) | 3/8-24 |
| Outlet Fit 1 (in) | 3/8-24 IF Female |
