Model No.: 260-15088

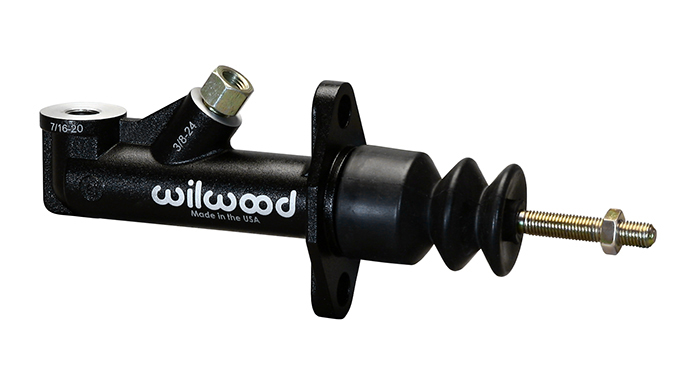

Wilwood’s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.

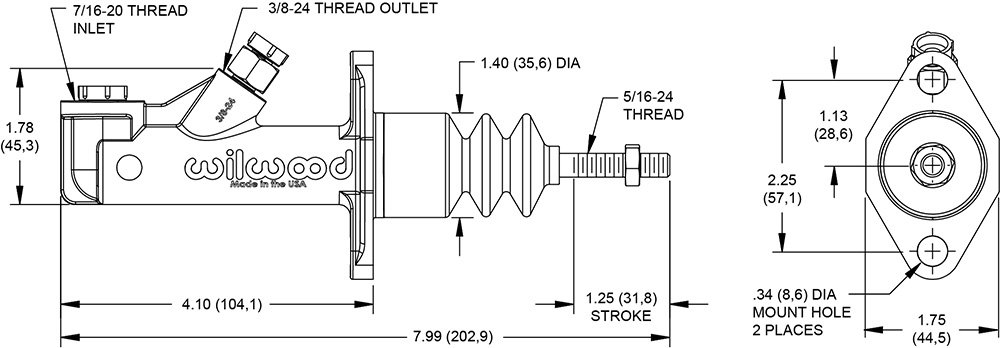

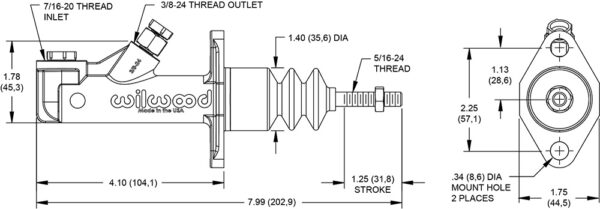

| Master Cylinder Dimensions | |
|---|---|
| Bore Size | 1/2″ |
| Area (in²) | 0.190 |
| Stroke | 1.25 |
| Volume (cu in) | 0.24 |
| Master Cylinder Description | |
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum |
| Finish | Black E-coat |
| Reservoir | |
| Res Type | Remote |
| Additional Dimensions | |
|---|---|
| Overall Length(in) | 7.85″ |
| Flange to End Length (in) | 4.10 |
| Inlet Size (in) | 7/16-20 |
| Inlet Fit (in) | |
| Outlet Size 1 (in) | 3/8-24 |
| Outlet Fit 1 (in) | 3/8-24 IF Female |
